GMC Canyon Towing Guide
GMC Canyon Towing Guide | Uebelhor & Sons GMC Vincennes
If you're hitching up for an early-morning fishing trip, a packed camper, or a utility trailer loaded with everything you need to tackle a property project across Southern Indiana, your GMC Canyon pickup is ready to go. With up to 7,700 pounds of towing capacity, this midsize GMC pickup has the muscle to pull heavy loads without taking up as much driveway space as a full-size truck.
Of course, there's much more towing than just hooking up a trailer and hitting the road. At Uebelhor & Sons GMC Vincennes, our experienced team will help you sort through the numbers, compare GMC Canyon trim levels, and choose the configuration that matches your towing needs.
How Much Can a GMC Canyon Tow?
With the right setup, the Elevation, AT4, and Denali trims can tow up to 7,700 pounds, making them strong candidates for pulling a boat, camper, or equipment trailer. The off-road-specialized AT4X variant has a 6,000-pound towing capacity, which drops to 5,500 pounds with the optional AEV Edition package.
Here's where doing some homework pays off: A camper's advertised dry weight doesn't include everything you'll pack for a trip. Freshwater, propane, batteries, groceries, and camping gear can add hundreds of pounds. Truck buyers from Lawrenceville, IL, should check their trailer's fully loaded weight, tongue weight, and the GMC Canyon's specific weight ratings before deciding which trim to purchase.
What Engine Powers the GMC Canyon?
GMC puts the same turbocharged engine under the hood of every Canyon. The powertrain features a 2.7-liter TurboMax inline-four-cylinder engine producing 310 horsepower and 430 pound-feet of torque, paired with an eight-speed automatic transmission.
The engine's torque provides enough pulling power to get a loaded trailer moving and accelerate onto the highway. Tow/Haul mode adjusts gear changes to account for the extra weight, and Powertrain Grade Braking helps maintain a controlled speed on downhill roads without relying as heavily on the brakes.
2026 GMC Canyon Towing Capacity by Trim
| Trim Configuration | Max Towing* (pounds) | Max Payload* (pounds) |
|---|---|---|
| Elevation 2WD | 7,700 | 1,670 |
| Elevation four-wheel drive (4WD) | 7,700 | 1,610 |
| AT4 four-wheel drive (4WD) | 7,700 | 1,570 |
| AT4X four-wheel drive (4WD) | 6,000 | 1,260 |
| AT4X AEV Edition | 5,500 | Check vehicle label |
| Denali four-wheel drive (4WD) | 7,700 | 1,390 |
*Figures represent maximum published capacities. Actual ratings depend on the truck's configuration, equipment, and loading.
GMC Canyon Elevation: Strong Towing Capacity and Practical Equipment
The GMC Canyon Elevation is a sensible choice for someone who needs a truck to pull a fishing boat, haul a mower, or take a camper out a few weekends each year. It matches the AT4 and Denali's maximum towing rating, and the rear-wheel-drive version has the highest published payload capacity in the lineup.
Notable features include:
- Rear-wheel drive (RWD) standard; four-wheel drive (4WD) available
- 2-inch factory suspension lift
- 18-inch gloss-black aluminum wheels with all-terrain tires
- 11.3-inch infotainment touchscreen and 11-inch digital instrument display
- Standard trailering package, ProGrade Trailering System, and Hitch View
- Available MultiStow tailgate storage
GMC Canyon Elevation: Strong Towing Capacity and Practical Equipment
The GMC Canyon Elevation is a sensible choice for someone who needs a truck to pull a fishing boat, haul a mower, or take a camper out a few weekends each year. It matches the AT4 and Denali's maximum towing rating, and the rear-wheel-drive version has the highest published payload capacity in the lineup.
Notable features include:
- Rear-wheel drive (RWD) standard; four-wheel drive (4WD) available
- 2-inch factory suspension lift
- 18-inch gloss-black aluminum wheels with all-terrain tires
- 11.3-inch infotainment touchscreen and 11-inch digital instrument display
- Standard trailering package, ProGrade Trailering System, and Hitch View
- Available MultiStow tailgate storage
GMC Canyon AT4: Better Traction for Rough Roads and Boat Ramps
Consider the GMC Canyon AT4 if your trailer frequently follows you off the pavement. Perhaps your boat ramp is gravel, your property has muddy access roads, or your camper spends more time at rustic campsites than paved RV parks.
The AT4 retains the 7,700-pound maximum towing rating and adds:
- Standard four-wheel drive (4WD)
- Automatic-locking rear differential
- Two-speed Autotrac transfer case
- Advanced Hill Descent Control
- Transfer case protective shield
- Normal, Terrain, Off-Road, and Tow/Haul driving modes
- MultiStow tailgate storage compartment
GMC Canyon AT4X: More Trail Equipment, Lower Towing Limits
The GMC Canyon AT4X is the choice for owners who take off-road driving seriously. It features specialized suspension, locking differentials, and added protection for rough terrain, though its maximum towing rating drops to 6,000 pounds.
The AT4X adds equipment you won't find on the other trims:
- 3-inch factory suspension lift
- Multimatic DSSV dampers
- Front and rear electronic locking differentials
- Rocker protectors and underbody protection
- Exclusive Baja driving mode
- Underbody cameras
- Available AEV Edition package with specialized off-road equipment

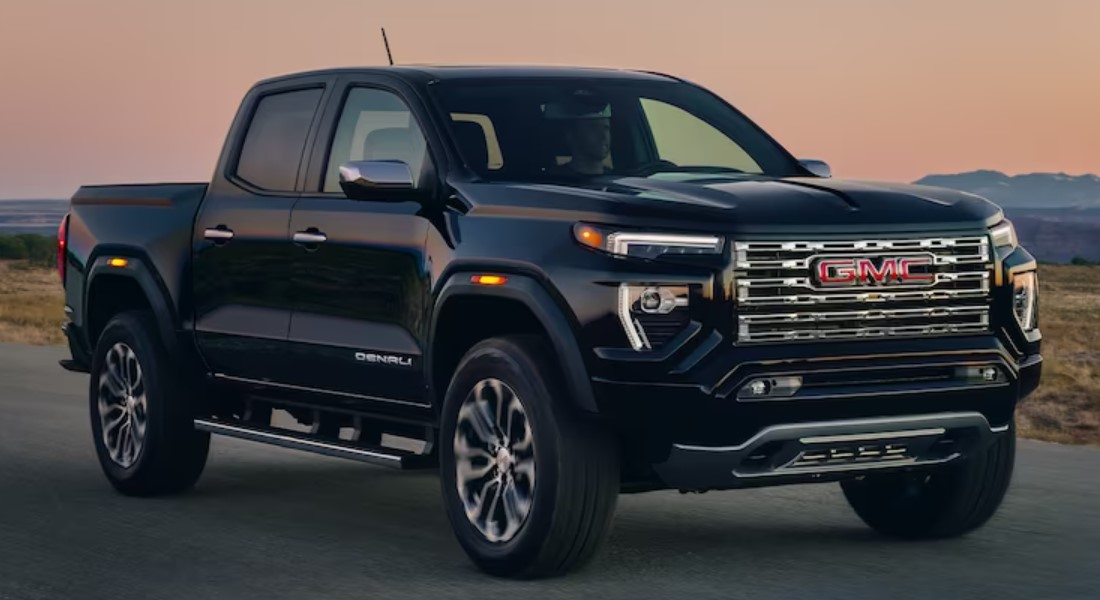

GMC Canyon Denali: Towing Strength With Premium Comfort
The luxurious GMC Canyon Denali variant makes long drives more pleasant, especially if you frequently haul a trailer and still want a comfortable truck for everyday driving. Its maximum towing capacity remains 7,700 pounds, matching the Elevation and AT4.
The Denali adds several premium features:
- Standard four-wheel drive (4WD)
- Exclusive 20-inch diamond-cut aluminum wheels
- Perforated leather-appointed seating
- Open-pore wood trim and Teak interior accents
- Bose premium audio system
- 6.3-inch multicolor Head-Up Display
- HD Surround Vision camera system
What Can You Tow With a GMC Canyon?
You might be surprised by the variety of trailers you can pull with a properly equipped GMC Canyon. These include many fishing boats, campers, ATVs, and utility trailers. Larger trailers and heavier equipment require a closer look at their fully loaded weight to make sure they stay within the truck's towing limits.
Possibilities include:
- Fishing boats: Aluminum boats, bass boats, and smaller recreational boats on suitable trailers.
- Campers: Pop-up campers, teardrop trailers, and many conventional travel trailers.
- Personal watercraft: One or two Jet Skis or similar watercraft with their trailer.
- ATVs and side-by-sides: Recreational machines, dirt bikes, and accompanying equipment.
- Utility trailers: Lawn tractors, zero-turn mowers, building materials, and landscaping supplies.
- Vehicle trailers: Certain lightweight cars transported on appropriately rated open trailers.
For Washington, IN, shoppers who already own a trailer, knowing its loaded weight makes comparing GMC Canyon configurations much easier.
GMC Canyon Towing Around Southern Indiana
Camping and RV Travel
A travel trailer opens up plenty of possibilities for weekends at Shakamak State Park, Patoka Lake, or other campgrounds within a few hours of home. The GMC Canyon Elevation, AT4, and Denali trims can tow many compact and midsize campers.
Remember to verify your camper's loaded weight before you depart. A full freshwater tank, propane, batteries, bicycles, and several days' worth of supplies can make a substantial difference.
Boating and Fishing
Early starts, tackle boxes, coolers, and a boat waiting in the driveway are familiar parts of fishing season. The GMC Canyon can tow many popular fishing boats, and the AT4's four-wheel-drive equipment helps on slippery ramps and rough launch areas.
Around Mount Carmel, IL, where fishing along the Wabash River is popular, a midsize truck also helps with maneuvering at boat ramps and in tighter parking areas.
ATVs and Recreational Equipment
A utility trailer carrying a side-by-side or a pair of ATVs is well within the towing range of many GMC Canyon configurations. The Elevation and AT4 are especially attractive for Sullivan, IN, owners who regularly transport recreational equipment.
If you're planning a trail-riding weekend, account for the weight of the trailer, machines, spare tires, tools, containers, and gear.
Rural Property Maintenance
Maintaining acreage can mean moving a riding mower one day and hauling fencing supplies the next. The GMC Canyon can tow appropriately weighted utility and equipment trailers, and its 5.1-foot bed has 41.9 cubic feet of space for tools and smaller loads.
Consider an Elevation 2WDsetup for higher payload needs. For regular trips down muddy lanes or up unpaved property entrances, you may prefer the AT4's standard four-wheel drive (4WD).
GMC Canyon Payload Capacity vs. Towing Capacity
A truck can have enough power to pull a trailer and still run out of payload capacity. Understanding the difference matters, especially when you're bringing passengers, luggage, tools, and other cargo.
- Towing capacity measures the maximum loaded trailer weight the truck can pull.
- Payload capacity measures how much weight the truck itself can carry, including occupants, cargo, accessories, and trailer tongue weight.
Choose the AT4 for its maximum payload rating of 1,570 pounds. A trailer applying 600 pounds of tongue weight leaves 970 pounds for passengers and cargo, assuming the truck has the full published payload allowance.
Add three adults, a toolbox, and weekend luggage, and you'll start using up the remaining capacity. The specific truck's weight labels provide the figures needed for an accurate calculation.
GMC Canyon Trailering Technology
Nobody enjoys backing up, getting out to check the hitch, moving another six inches, and repeating the process three more times. The GMC Canyon includes technology systems that help take some of the frustration out of towing, especially for drivers who don't pull a trailer every day.
Depending on trim and equipment, available trailering features include:
- Hitch View: A close-up camera image helps align the truck's receiver with the trailer coupler.
- ProGrade Trailering System: Integrated trailering functions help with setup, trailer profiles, and checklists.
- Integrated trailer brake controller: Adjusts the braking output of compatible trailer brakes.
- Tow/Haul mode: Adjusts shift timing for heavier loads.
- Multiple camera views: Additional angles help with backing, parking, and maneuvering.
- Blind Zone Steering Assist with Trailering: Provides warnings and steering assistance under certain conditions when vehicles enter monitored blind zones.
If you regularly back a trailer into a narrow driveway or a crowded campground, the camera systems alone will appeal to you.
What Is Tongue Weight and Why Does It Matter?
Tongue weight is the downward pressure your trailer applies to the truck's hitch. GMC generally recommends 10-15 percent of the loaded trailer weight for conventional trailers.
For example, a 5,000-pound loaded camper might apply approximately 500 to 750 pounds of tongue weight. Every pound, including passengers
